Ethernet Router Brass Shielded RJ45 100 Base T Integrated Magnetics
Jack
Quick details:
- Model Number : MJ6-B211-RVS1T099-C
- 8P8C one port
- Tab up
- LED : none, can be changed as your request.
- Performance Catagory : 10 / 100 Mb
- SMT Mounting
Product Parameter :
| Part Number: | MJ6-B211-RVS1T099-C |
| Product Family: | RJ45 100 Base T |
| Overview: | SMT RJ45 10 / 100 Base T Jack 1x1 8P8C Modular Jack |
| Description: | 8 core 1x1 ports Low Profile RJ45 connector, with Shielded tabs |
| | Right Angle / Side Entry, SMT , Operating temprature range:
-40℃-70℃ |
| | |
| General |
| Series: | RJ45 100 Base T |
| Numbers of ports: | 1x1 |
| Orientation: | Right Angle (Side entry) |
| Pin type: | SMT solder |
| Positions/ Loaded contacts | 8P8C |
| Latch: | Tab up |
| LEDs: | Yes |
| Shielded: | YES |
| Jack Height: | 9.75mm |
| Magnetic: | Yes |
| Performance category: | 10 / 100 Base T |
| Power over Ethernet(PoE): | Non-PoE |
| Physical |
| Color-Resin: | Black |
| Durability(mating cycles max): | 750 |
| Material | Metal: | Phosphor bronze |
| Resin: | Liquid crystal polymer |
| Plating mating: | Gold over Nickel |
| Plating termination: | Gold Flash |
| Plating min- mating: | 3u" / 6u"/15u"/30u" optional |
| Net Weight: | TBA |
| PCB: | FR4 |
| PCB locator: | Yes |
| PCB retention: | None |
| PCB Thickness- Recommended | 1.6mm |
| Packaging type: | Tray |
| Temperature range: | -40℃-70℃ |
| RoHS compliant | YES, RoHS AND Halogen-Free |
| Electrical |
| Current rating: | 1.5AMPS |
| Voltage rating: | 125V AC |
| Insulation Resistance: | 500MΩ mini |
| Withstand voltage: | 1000V RMS 60Hz |
| Contact Resistance: | 50mΩ Max |
| Grounding to PCB: | YES |
| Grounding to Panel: | YES |
Our Advantage:
1 > 10 years experience
More than 10 years experience on RJ45 Female connector developing,
producing and marketing; and our products are sold to more than 800
customers in 63 countries; what’s more, HELING has provided over
1000 models of RJ45 Female Connectors for our customers.
Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi are our customers
2 > Quality guarantee
Rigorous production and quality check in each section, providing 6
years warranty for all our RJ45 Female Connectors.
3 > Responded within 24-hour
All enquiries will be replied within 24 hours in working day.
FAQ
1, How long can I expect to get the sample and mass order.
Re : For sample order, the delivery time is in 2 weeks; and for
mass order, the delivery time is in 3-4 weeks. It depends on your
quantity and our inventory.
2, Can you print our customized logo?
Re : Yes, of course. We have a professional design team and the
complete production lines. Just provide the details requirement to
us, we will be happy to customize your logo and print it on your
order.
3, What is your payment terms?
Re : T/T 30% deposit with order and balance paid before shipment;
Paypal are OK, and L /C is acceptable when total amount is more
than US$10,000.
4, How can I order?
Re :
1, Choose the RJ45 Female Connector you need and send us an
inquiry, we will reply in 24 hours.
2, Confirm the drawings and order, we will send you a proforma
invoice for you to make the payment.
3, Once we confirm your payment, your order will be started and
finished with 3-4 weeks depends on your quantity.
4, Ship your goods by DHL/FedEx/UPS, as your request.
5, Follow-up client usage status regularly and after sales service
5, If quality issues happened, what should I do?
Re: Just email us or contact us about your complaints problems, we
will forward it to our related departments and come back to you
with a satisfied solution within 24 hours.

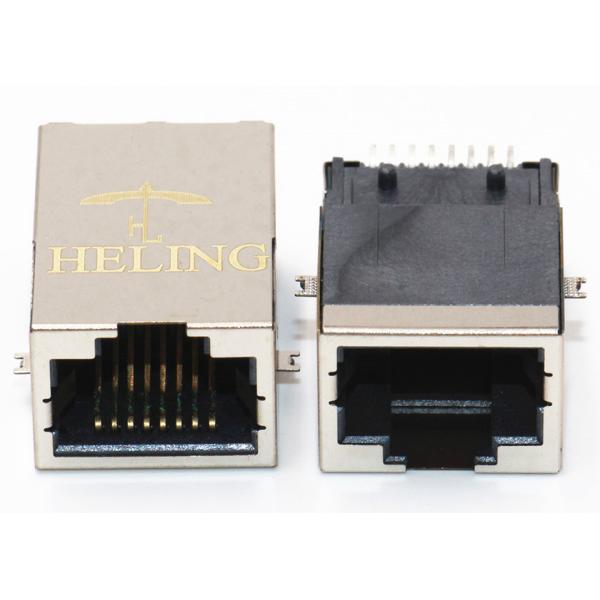

Product Image :
